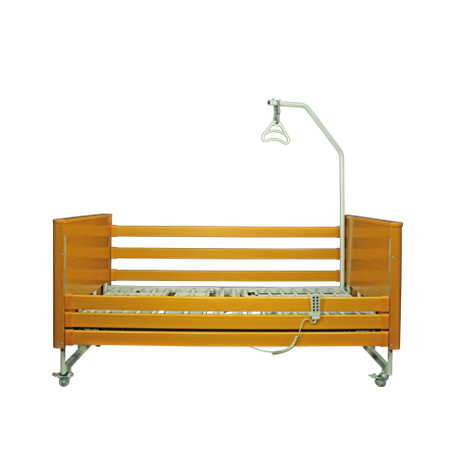

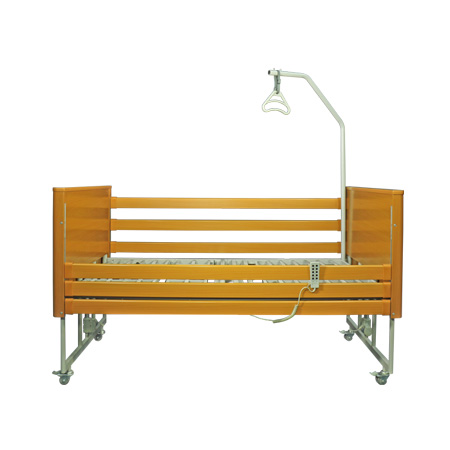

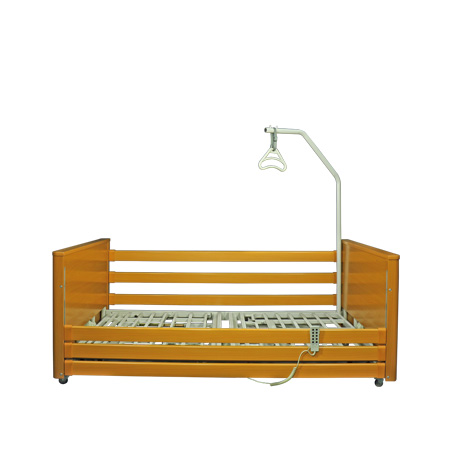

Electric wooden bed with adjustable head and foot sections.
Height adjustable from 68 cm to 28 cm from the floor.
measurements in centimeters
| Total Bed width | 136 |
|---|---|
| Total Bed length | 217 |
| Total Bed length (Extended) |
231 |
| Mattress base width | 120 |
| Mattress base length |
200 |
| Total Mattress base length (Extended) | 215 |
| Foot and Head Panel height from matress base |
62 |
| Minimum mattress base height from the floor |
28 |
| Minimum mattress base height from the floor to Foot/head panel |
90 |
| Maximum mattress base height from the floor |
68 |
| Maximum mattress base height from the floor to Foot/head panel |
130 |
|---|---|
| Side rails height from mattress base | 52 |

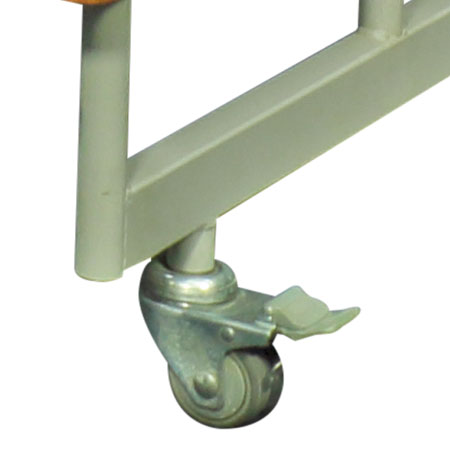

| Caster Diameter |
3” (Double wheels) WH009 |
| Maximum user weight | 350 kg. |
| Backrest angle |
70° |
| Thigh section angle | 30° |
| Calf section angle (when thigh section raised) |
20° |
| Calf section angle (after thigh section raised) |
8° |
| Packing dimensions |
(1/5): 123*115.5*17 (2/5): 123*105.5*18 (3/5): 140*95*13 (4/5): 140*95*13 (5/5): 204*37.7*6 |
| Total Bed width |
| 136 |
| Total Bed length |
| 217 |
| Total Bed length (Extended) |
| 231 |
| Mattress base width |
| 120 |
| Total Mattress base length |
| 200 |
| Total Mattress base length (Extended) |
| 215 |
| Foot and Head Panel height from matress base |
| 62 |
| Minimum mattress base height from the floor |
| 28 |
| Minimum mattress base height from the floor to Foot/head panel |
| 90 |
| Maximum mattress base height from the floor |
| 68 |
| Maximum mattress base height from the floor to Foot/head panel |
| 130 |
| Side rails height from mattress base |
| 52 |
| Caster Diameter |
| 3” (Double wheels) WH009 |
| Maximum user weight |
| 350 kg. |
| Backrest angle |
| 70° |
| Thigh section angle |
| 30° |
| Calf section angle (when thigh section raised) |
| 20° |
| Calf section angle (after thigh section raised) |
| 8° |
| Packing dimensions |
| (1/5): 123*115.5*17 (2/5): 123*105.5*18 (3/5): 140*95*13 (4/5): 140*95*13 (5/5): 204*37.7*6 |
| Maximum mattress base height from the floor |
| 68 |
