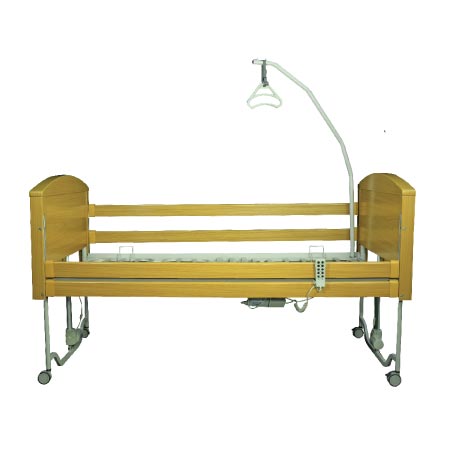

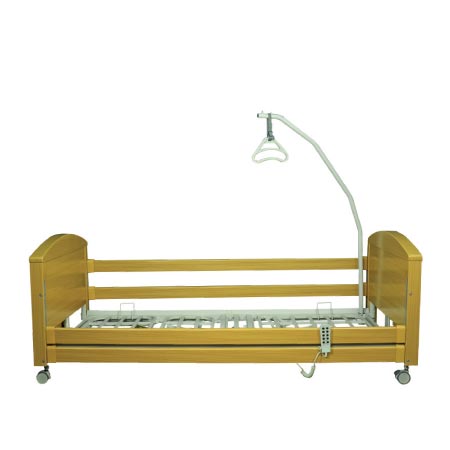

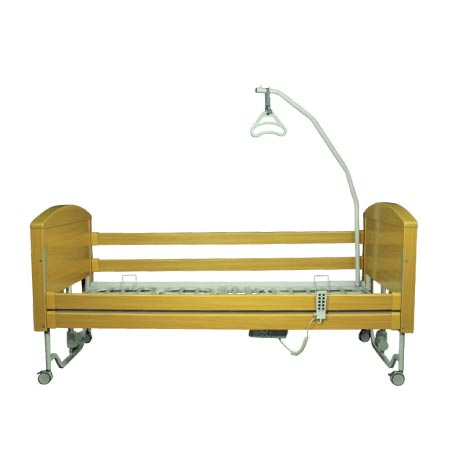

Electric wooden bed with adjustable head and foot sections.
Height adjustable from 62 cm to 23 cm from the floor.
measurements in centimeters
| Total Bed width | 105 |
|---|---|
| Total Bed length | 219 |
| Total Bed length (Extended) |
231 |
| Mattress base width | 90 |
| Mattress base length |
200 |
| Total Mattress base length (Extended) | 215 |
| Foot and Head Panel height from matress base |
63 |
| Minimum mattress base height from the floor |
23 |
| Minimum mattress base height from the floor to Foot/head panel |
85 |
| Maximum mattress base height from the floor |
62 |
| Maximum mattress base height from the floor to Foot/head panel |
125 |
|---|---|
| Side rails height from mattress base | 40 |

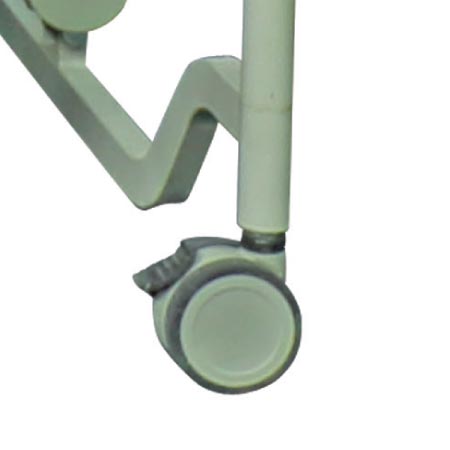

| Caster Diameter |
3” (PVC) WH001 |
| Maximum user weight | 180 kg. |
| Backrest angle |
70° |
| Thigh section angle | 35° |
| Calf section angle (when thigh section raised) |
25° |
| Calf section angle (after thigh section raised) |
3° |
| Packing dimensions |
(1/3): 114.5*94*24 (2/3): 107.5*87.5*21.5 (3/3): 204*37.7*60 |
| Total Bed width | 105 |
|---|---|
| Total Bed length | 219 |
| Total Bed length (Extended) |
231 |
| Mattress base width | 90 |
| Mattress base length |
200 |
| Total Mattress base length (Extended) | 215 |
| Foot and Head Panel height from matress base |
63 |
| Minimum mattress base height from the floor |
23 |
| Minimum mattress base height from the floor to Foot/head panel |
85 |
| Maximum mattress base height from the floor |
62 |
| Maximum mattress base height from the floor to Foot/head panel |
125 |
| Side rails height from mattress base | 40 |
| Caster Diameter |
3” (PVC) WH001 |
| Maximum user weight | 180 kg. |
| Backrest angle |
70° |
| Thigh section angle | 35° |
| Calf section angle (when thigh section raised) |
25° |
| Calf section angle (after thigh section raised) |
3° |
| Packing dimensions |
(1/3): 114.5*94*24 (2/3): 107.5*87.5*21.5 (3/3): 204*37.7*60 |
