Product Description

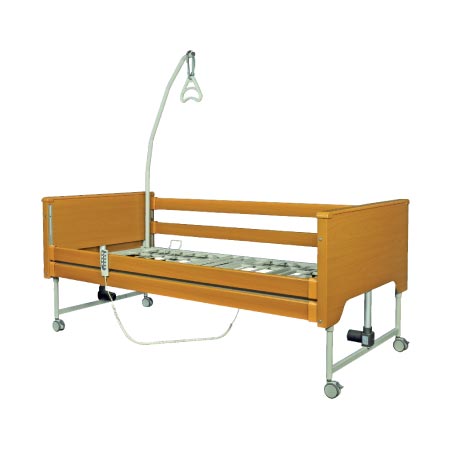

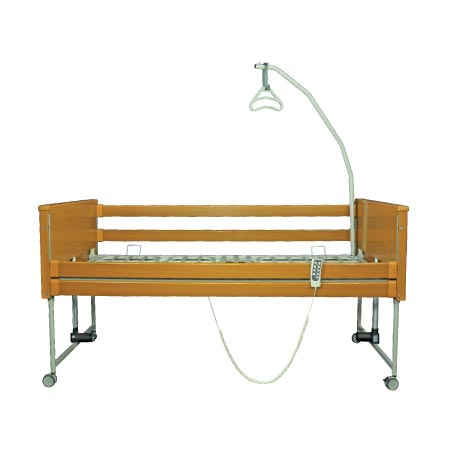

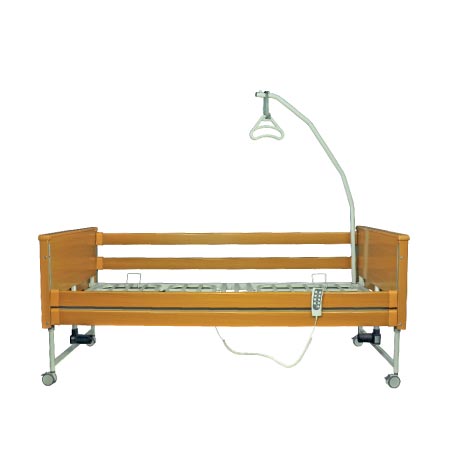

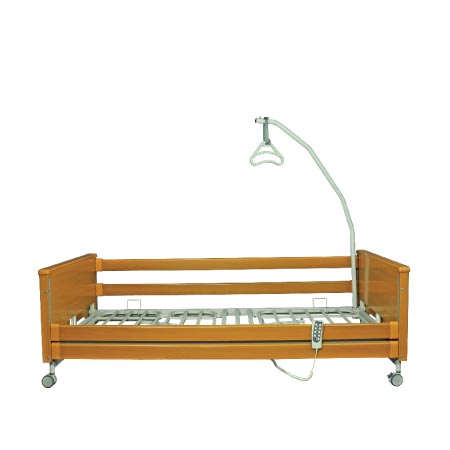

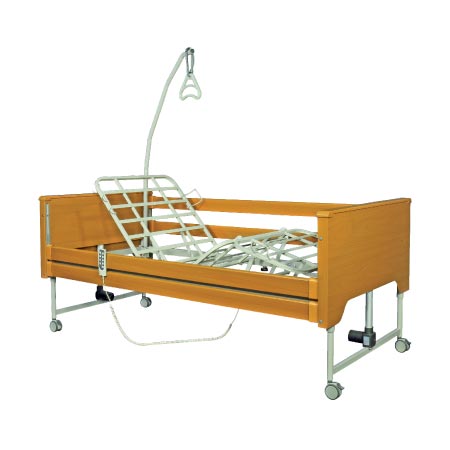

Electric wooden bed with adjustable head and foot sections.
Height adjustable from 68 cm to 29 cm from the floor.
NINA 9557
Technical Details
measurements in centimeters
| Total Bed width | 104 |
|---|---|
| Total Bed length | 214 |
| Total Bed length (Extended) |
No |
| Mattress base width | 89 |
| Mattress base length |
200 |
| Total Mattress base length (Extended) | No |
| Foot and Head Panel height from matress base |
43 |
| Minimum mattress base height from the floor |
29 |
| Minimum mattress base height from the floor to Foot/head panel |
72 |
| Maximum mattress base height from the floor |
68 |
| Maximum mattress base height from the floor to Foot/head panel |
112 |
|---|---|
| Side rails height from mattress base | 38 |

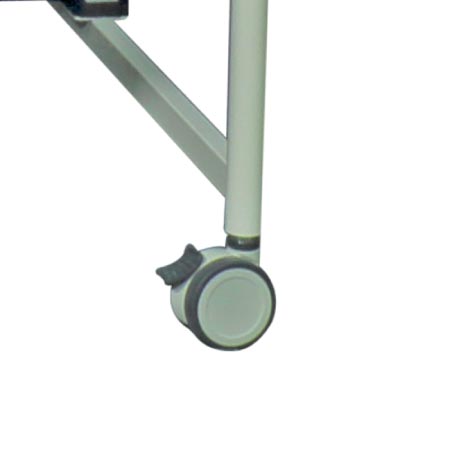

| Caster Diameter |
3” (PVC) WH001 |
| Maximum user weight | 135 kg. |
| Backrest angle |
70° |
| Thigh section angle | 40° |
| Calf section angle (when thigh section raised) |
15° |
| Calf section angle (after thigh section raised) |
No |
| Packing dimensions |
(1/3): 123*93*21.5 (2/3): 109*96*19 (3/3): 204*37.7*6 |
| Total Bed width | 104 |
|---|---|
| Total Bed length | 214 |
| Total Bed length (Extended) |
No |
| Mattress base width | 89 |
| Mattress base length |
200 |
| Total Mattress base length (Extended) | No |
| Foot and Head Panel height from matress base |
43 |
| Minimum mattress base height from the floor |
29 |
| Minimum mattress base height from the floor to Foot/head panel |
72 |
| Maximum mattress base height from the floor |
68 |
| Maximum mattress base height from the floor to Foot/head panel |
112 |
| Side rails height from mattress base | 38 |
| Caster Diameter |
3” (PVC) WH001 |
| Maximum user weight | 135 kg. |
| Backrest angle |
70° |
| Thigh section angle | 40° |
| Calf section angle (when thigh section raised) |
15° |
| Calf section angle (after thigh section raised) |
No |
| Packing dimensions |
(1/3): 123*93*21.5 (2/3): 109*96*19 (3/3): 204*37.7*6 |

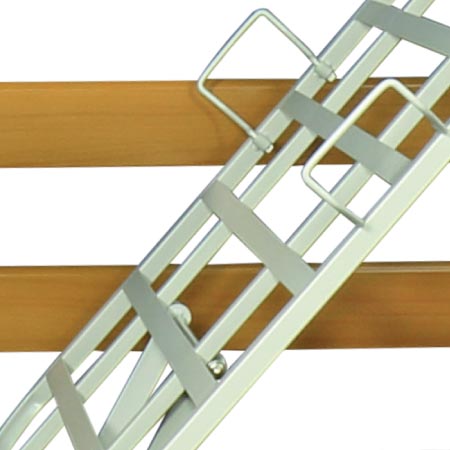

Details
click on the image
