SELPRO 9574

Product Description

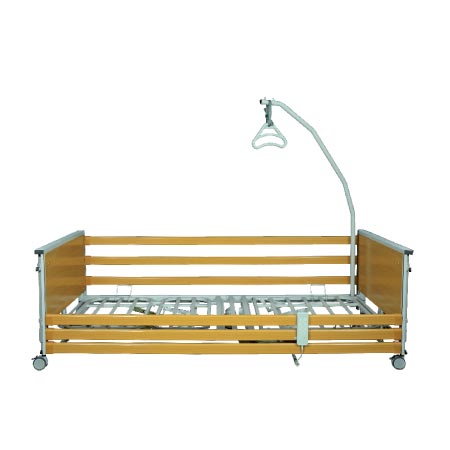

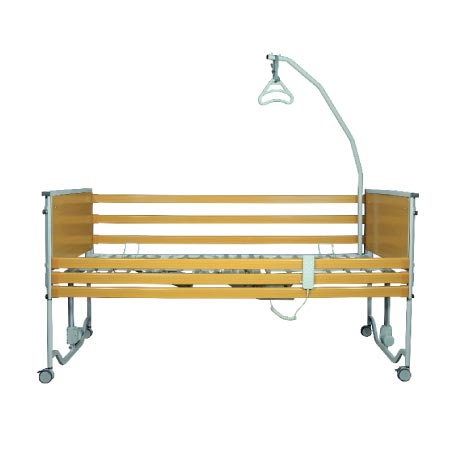

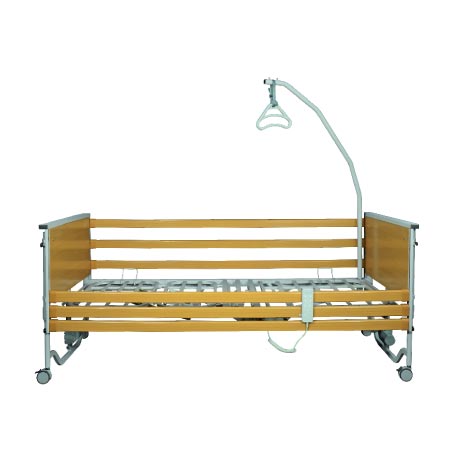

Electric wooden bed with adjustable head and foot sections.
Height adjustable from 62 cm to 23 cm from the floor.

Key features

  • Length adjustable mattress base: +15 cm.
  • Drop down 4 bar aluminium side rails (Included).

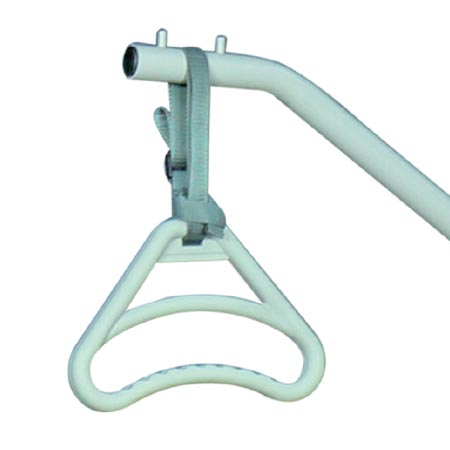

  • Trapeze bar not included (Option).
  • Possibility to be transformed into a wooden bed by adding extra wooden head/foot sections and wooden
    coloured aluminium side rails (as shown in the picture).
Categories: ,

Technical Details

measurements in centimeters

Total Bed width 100
Total Bed length 214
Total Bed length (Extended)
No
Mattress base width 90
Mattress base length
200
Total Mattress base length (Extended) 215
Foot and Head Panel height from matress base
49
Minimum mattress base height from the floor
23
Minimum mattress base height from the floor
to Foot/head panel
71
Maximum mattress base height from the floor
62
 Maximum mattress base height from the floor
to Foot/head panel
110
 Side rails height from mattress base 43

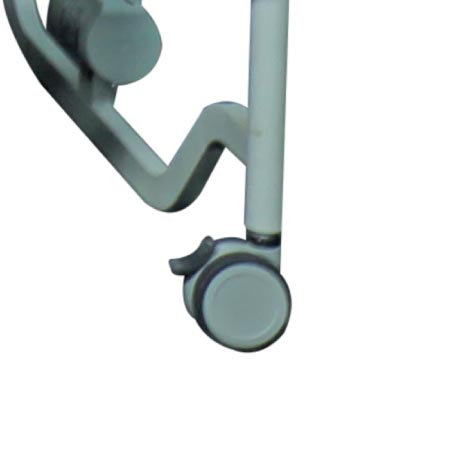

 Caster Diameter
3” (PVC)
WH001
 Maximum user weight 180 kg.
Backrest angle
70°
Thigh section angle 35°
Calf section angle (when thigh section raised)
24°
Calf section angle (after thigh section raised)
Packing dimensions
(1/3): 114*93*18.5
(2/3): 104*74*17
(2/3): 204*37.7*6

Total Bed width 100
Total Bed length 214
Total Bed length (Extended)
No
Mattress base width 90
Mattress base length
200
Total Mattress base length (Extended) 215
Foot and Head Panel height from matress base
49
Minimum mattress base height from the floor
23
Minimum mattress base height from the floor
to Foot/head panel
71
Maximum mattress base height from the floor
62
 Maximum mattress base height from the floor
to Foot/head panel
110
 Side rails height from mattress base 43
 Caster Diameter
3” (PVC)
WH001
 Maximum user weight 180 kg.
Backrest angle
70°
Thigh section angle 35°
Calf section angle (when thigh section raised)
24°
Calf section angle (after thigh section raised)
Packing dimensions
(1/3): 114*93*18.5
(2/3): 104*74*17
(2/3): 204*37.7*6
