Product Description

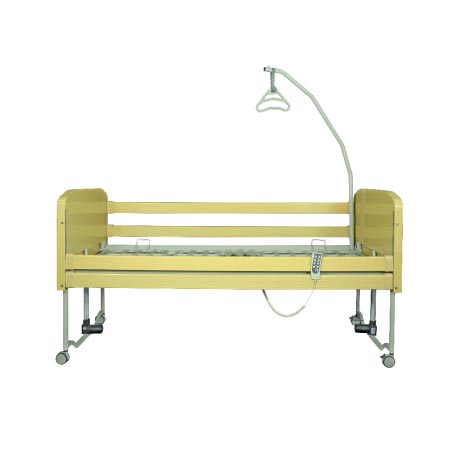

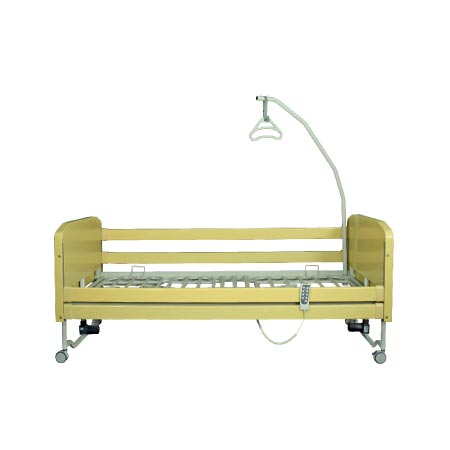

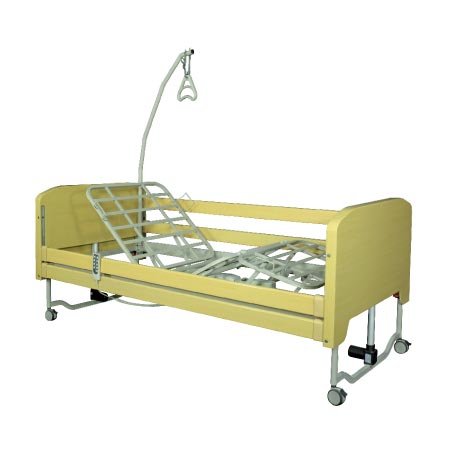

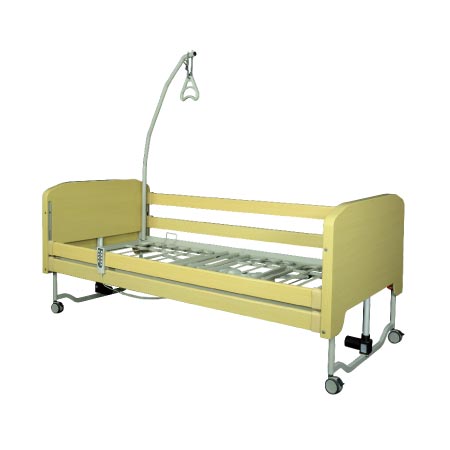

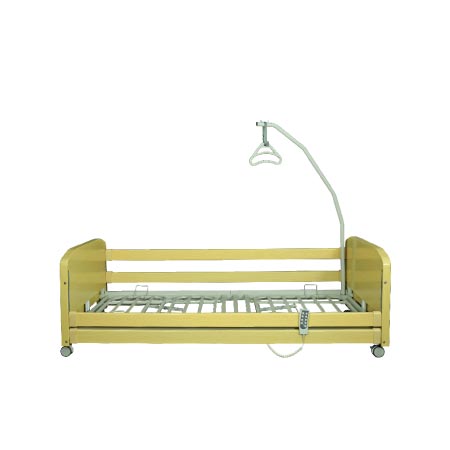

Electric wooden bed with adjustable head and foot sections.
Height adjustable from 62 cm to 22 cm from the floor.
Key features
- Aluminium side rails, wooden colour.
HETTON 9572
Technical Details
measurements in centimeters
| Total Bed width | 104 |
|---|---|
| Total Bed length | 203 |
| Total Bed length (Extended) |
No |
| Mattress base width | 89 |
| Mattress base length |
200 |
| Total Mattress base length (Extended) | No |
| Foot and Head Panel height from matress base |
50 |
| Minimum mattress base height from the floor |
22 |
| Minimum mattress base height from the floor to Foot/head panel |
73 |
| Maximum mattress base height from the floor |
62 |
| Maximum mattress base height from the floor to Foot/head panel |
111 |
|---|---|
| Side rails height from mattress base | 37 |

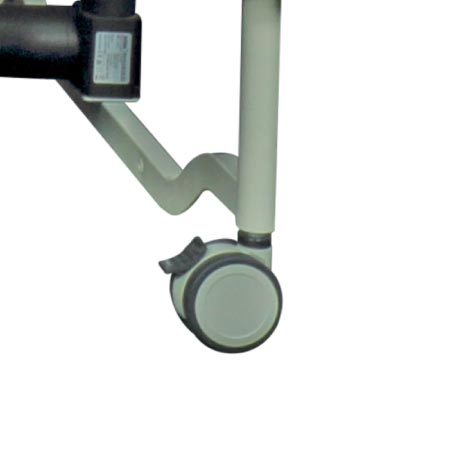

| Caster Diameter |
3” (PVC) WH001 |
| Maximum user weight | 135 kg. |
| Backrest angle |
70° |
| Thigh section angle | 35° |
| Calf section angle (when thigh section raised) |
15° |
| Calf section angle (after thigh section raised) |
No |
| Packing dimensions |
(1/3): 123*92.5*21.5 (2/3): 109*87.5*18.5 (2/3): 204*37.7*6 |
| Total Bed width | 104 |
|---|---|
| Total Bed length | 203 |
| Total Bed length (Extended) |
No |
| Mattress base width | 89 |
| Mattress base length |
200 |
| Total Mattress base length (Extended) | No |
| Foot and Head Panel height from matress base |
50 |
| Minimum mattress base height from the floor |
22 |
| Minimum mattress base height from the floor to Foot/head panel |
73 |
| Maximum mattress base height from the floor |
62 |
| Maximum mattress base height from the floor to Foot/head panel |
111 |
| Side rails height from mattress base | 37 |
| Caster Diameter |
3” (PVC) WH001 |
| Maximum user weight | 135 kg. |
| Backrest angle |
70° |
| Thigh section angle | 35° |
| Calf section angle (when thigh section raised) |
15° |
| Calf section angle (after thigh section raised) |
No |
| Packing dimensions |
(1/3): 123*92.5*21.5 (2/3): 109*87.5*18.5 (2/3): 204*37.7*6 |
